The Challenge

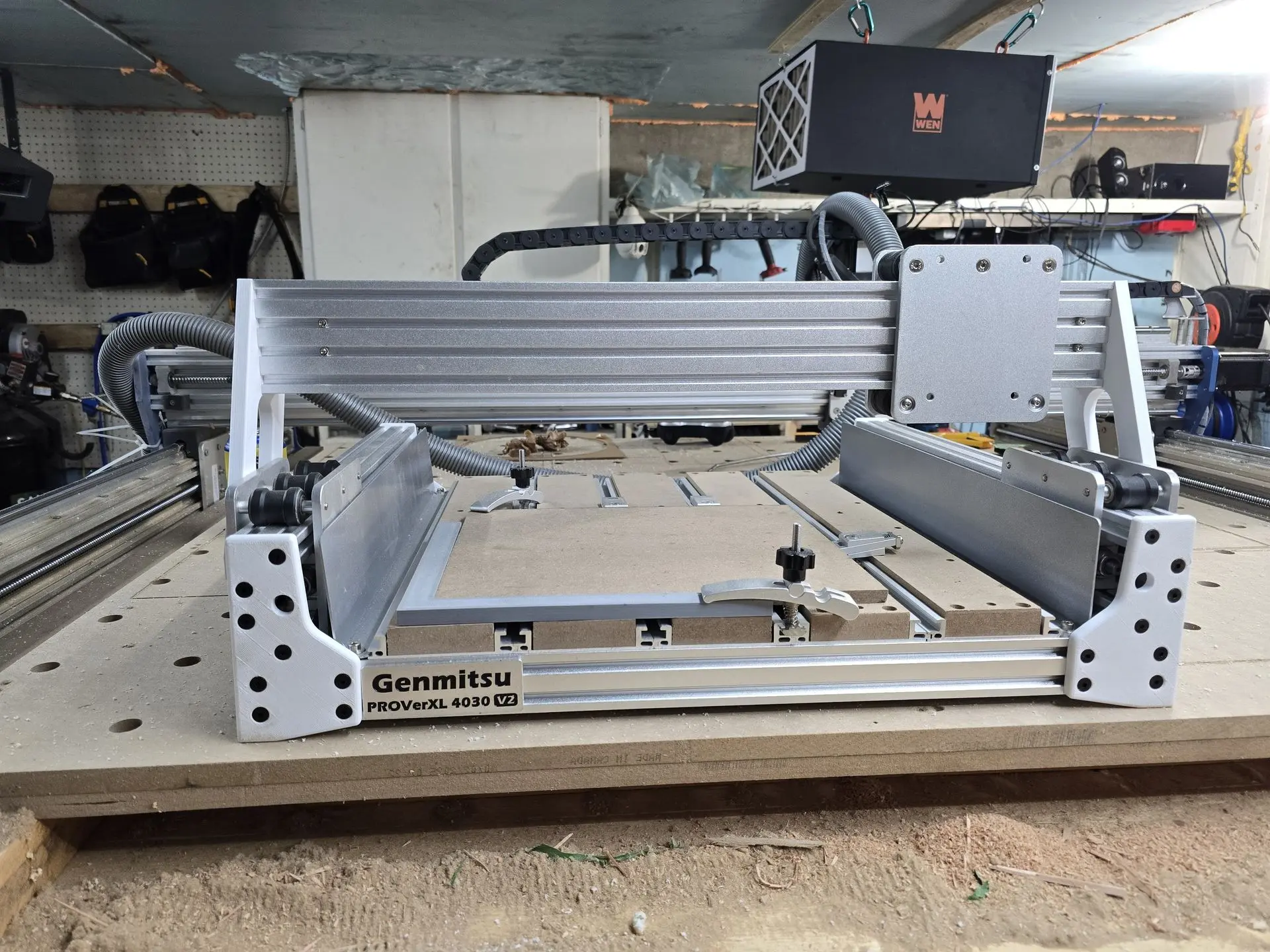

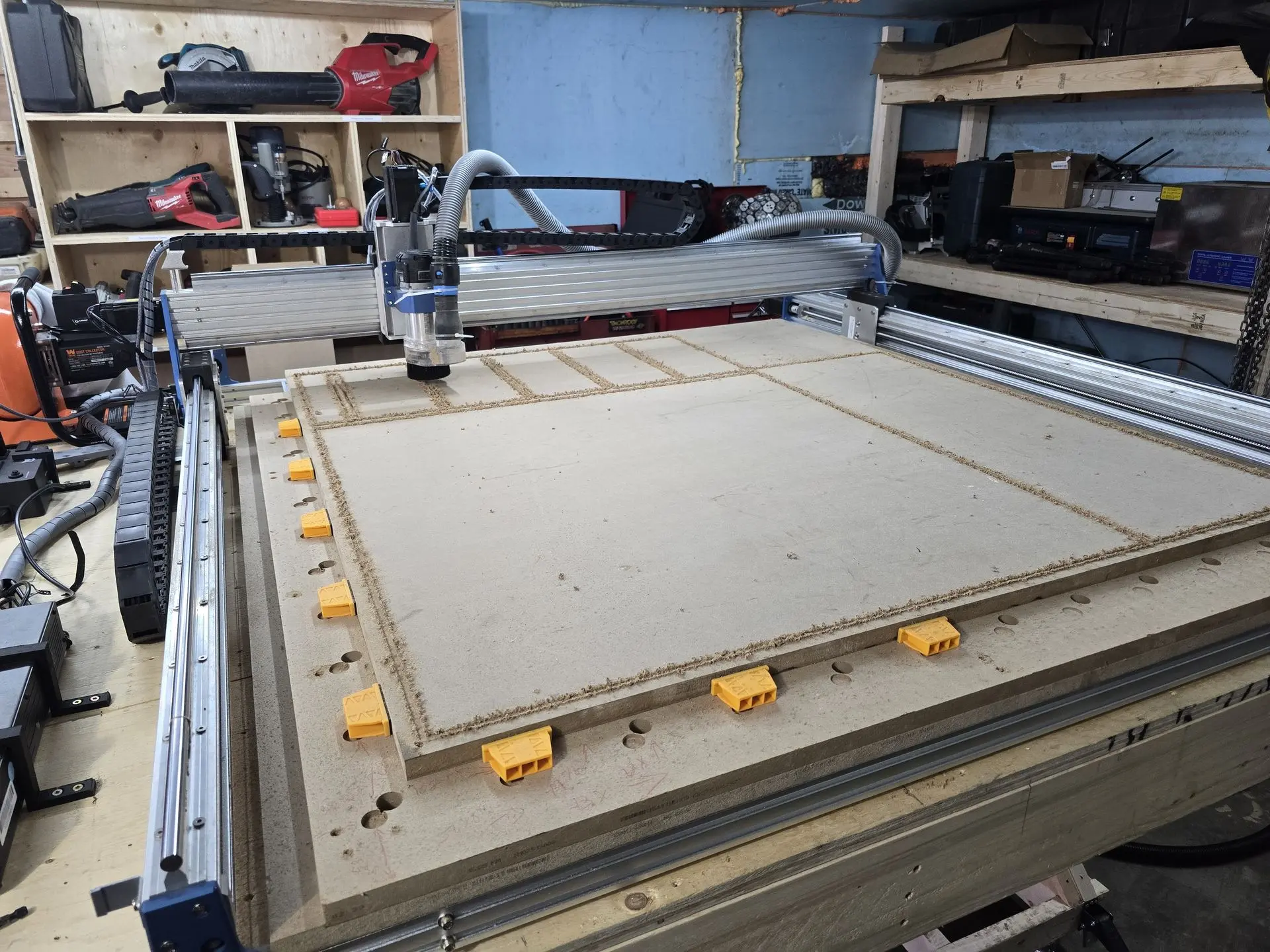

After upgrading our Genmitsu ProVerXL 4030 v2 to a larger four-foot by four-foot cutting area, we were left with a set of perfectly good lead screws and extrusions. Rather than let them sit idle, we wanted to reuse them to build a second machine. The problem was the brackets that tie all the aluminum extrusions together. Buying a whole new set would defeat the point of reusing parts we already had.
What We Did
So instead of ordering replacements, we reverse-engineered them. We 3D scanned the original brackets to capture their exact geometry, then rebuilt each one in FreeCAD, keeping the fit identical to the factory parts with only minor refinements. The full set covers everything needed to assemble the frame: front brackets, rear brackets, X gantry brackets, and X gantry carrier brackets, two of each. The parts shown here are printed in PLA as working prototypes, with the finalized versions to be printed in PETG-CF for added strength.
The 3D Scan

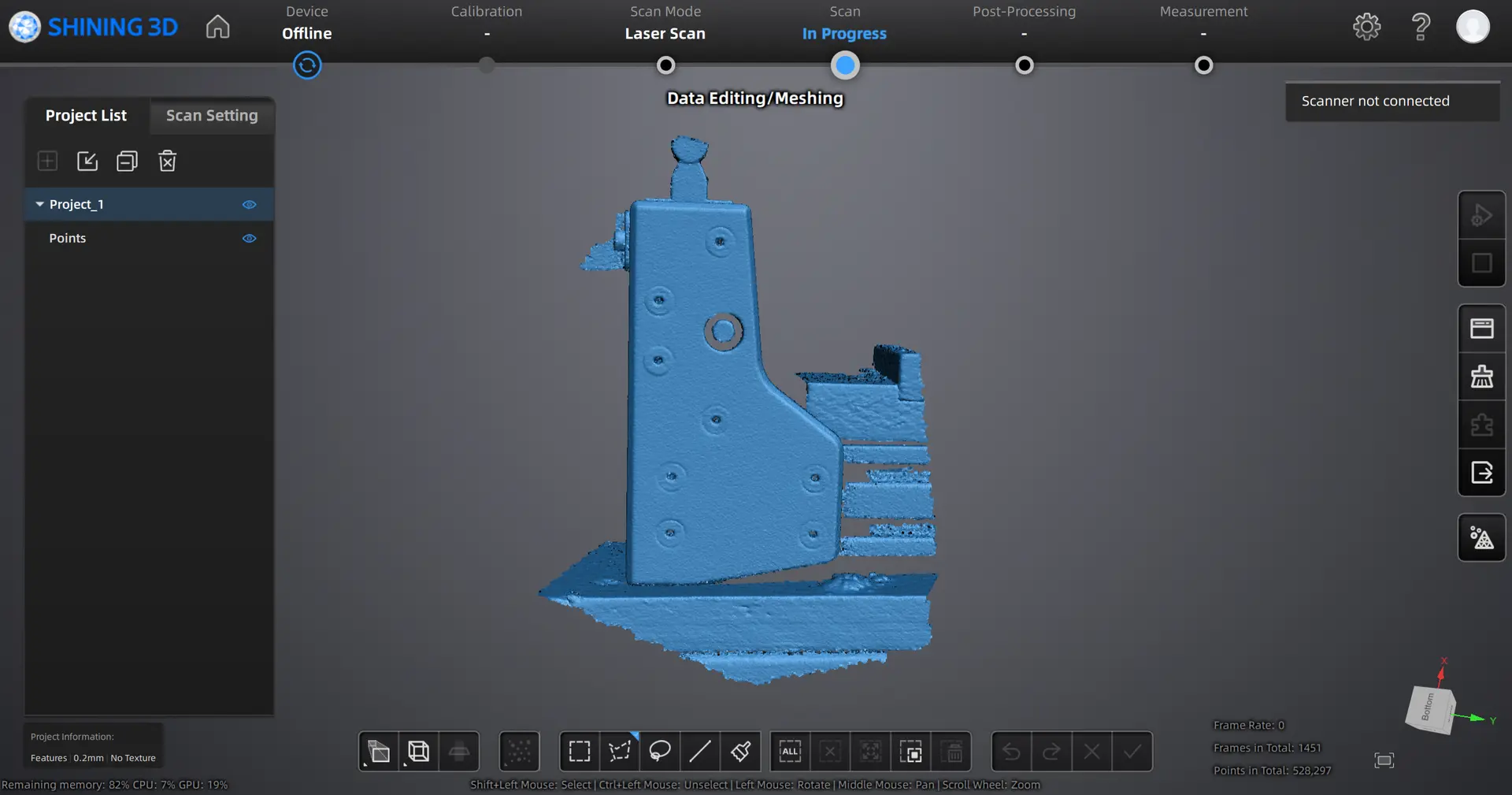

Capturing the exact geometry of the original bracket.
The CAD Model

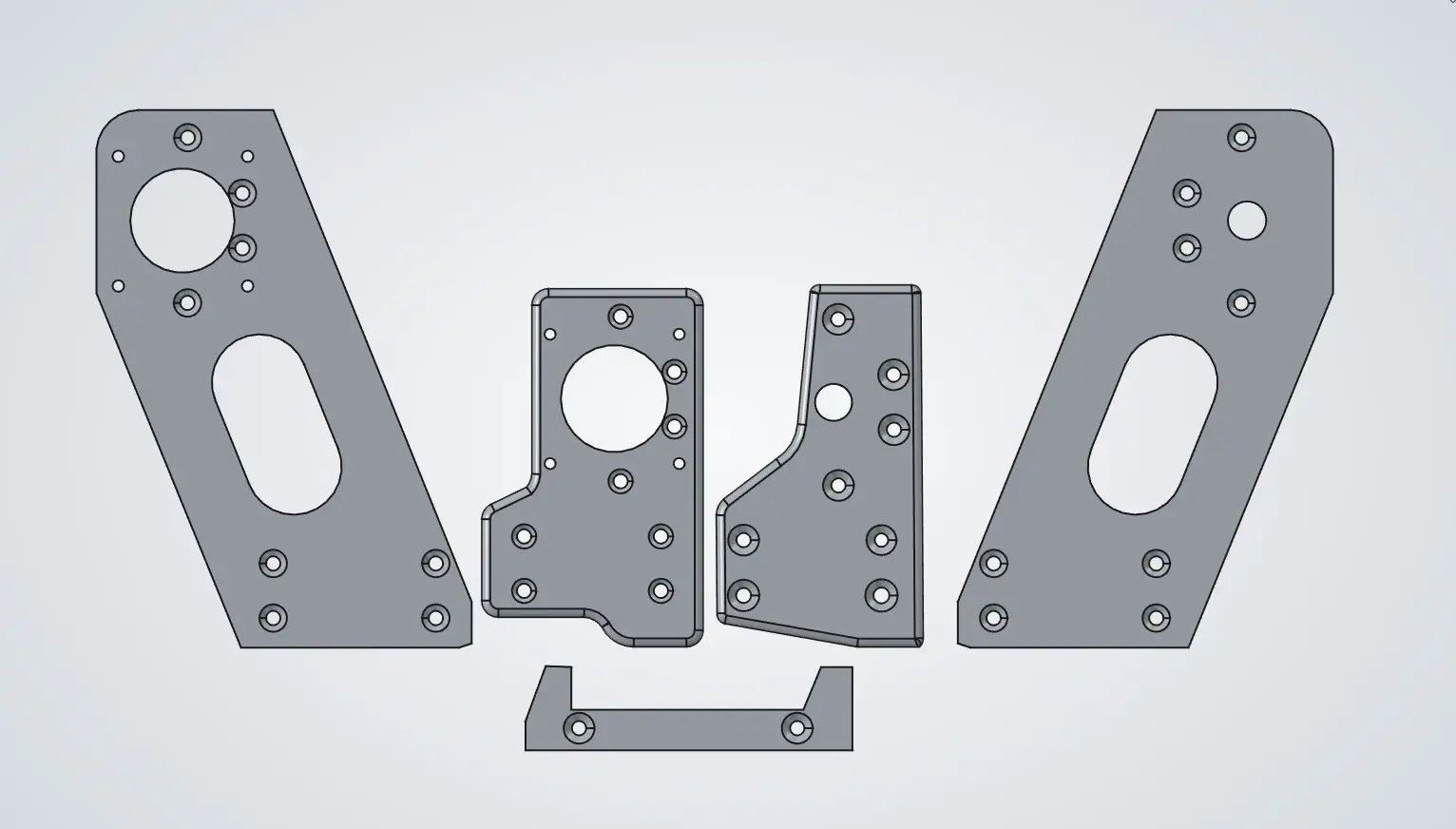

The full set rebuilt in FreeCAD, ready to print or mill.
The Result
The project is still in the prototyping and testing phase, but the printed brackets fit correctly and feel rigid enough for real use, with proper load testing to follow once the design is locked in. The longer-term goal is flexibility. Once finalized, anyone rebuilding a machine like this could either 3D print the brackets cheaply instead of buying originals, or mill them from aluminum on their own CNC. It's a clean example of turning a physical part into an editable design you can reproduce whatever way suits you.
